Mundima yemazuva ano yekugadzira machining, yega yega micron-level kuvandudzwa mukurongeka kunogona kutungamira mukusvetuka mumhando yechigadzirwa. Se "bhiriji" rinobatanidza muchina chishandiso spindle uye chekucheka chishandiso, kusarudzwa kwechibatiso chinokanganisa zvakananga machining, hupenyu hwechishandiso uye kugona kugadzira.
Pakati pemhando dzakasiyana-siyana dzevabati vezvishandiso, iyo Hydraulic Holder yave sarudzo yakasarudzika yemhando yepamusoro-chaiyo machining nekuda kweiyo yakasarudzika misimboti yekushanda uye kuita kwakatanhamara.

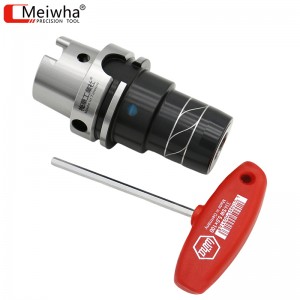

Meiwha BT-HM Hydraulic Holder

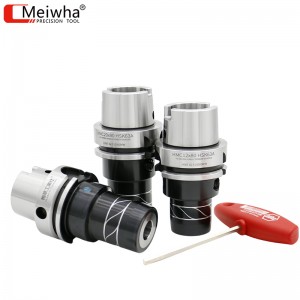

Meiwha HSK-HM Hydraulic Holder
I. Kushanda Nheyo yeHydraulic Holder: Kushandiswa Kwazvo kwePascal's Principle

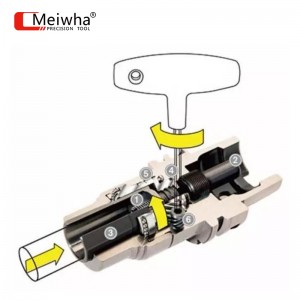

BT-HM Hydraulic Structure Chart
Nheyo yekushanda yeHydraulic Holderyakavakirwa pamusimboti waPascal, uyo unotaura kuti kudzvinyirirwa kwemvura kunofambiswa zvakafanana kumativi ese mukati memudziyo wakavharwa. Chimiro chayo chepakati chine kamuri yeoiri yakavharwa, bhaudhi inomanikidza, piston, uye inochinjika yekuwedzera sleeve. Kana chipanera chine hexagonal chikasungwa kuti chikurwe mubhaudhi inodzvanya, bhaudhi inosundira piston kuti ifambe, ichidzvanya mafuta akakosha ehydraulic mukamuri yemafuta. Sezvo iyo mvura isingachinjiki, iyo inogadzirwa kudzvanywa ichaendeswa zvakaenzana kune yega yega chikamu chekuwedzera sleeve. Pasi pe hydraulic pressure, sleeve yekuwedzera ichaita yunifomu uye inodzoreka elastic deformation, nokudaro 360 ° ichinyatsobata mubato wemudziyo, zvichiita kuti kusungirira kupedziswe nechipanera chimwe chete.
II. Izvo zvinoshamisa zvakanakira zveHydraulic Holder
Kutenda kune yakasarudzika misimboti yekushanda, iyoHydraulic Holderinopa nhevedzano yezvakanakira zvisingaenzaniswi kune izvo zvechinyakare Zvishandiso zvibato. Aya mabhenefiti anonyatso dyidzana uye anotevera zvine musoro chikonzero-uye-mhedzisiro hukama:
1. Yakanyanya kukwirisa clamping kurongeka uye concentricity:
Nekuti iyo hydraulic oiri inogovera zvakaenzana kudzvanywa, zvichiita kuti sleeve yekuwedzera ipinde 360 ° yese-kutenderera yunifomu deformation, inogona kunyatso kutsiva zvikanganiso zvidiki zvekucheka chishandiso uye chibatiso chemidziyo, uye kudzora radial runout uye kudzokorora kurongeka kwechokwadi mukati me3 μm (kunyangwe mukati me2 μm pasi pemamiriro ekuyerwa akakodzera).
2. Yakanakisa vibration damping maitiro:
Nekuti iyo yakakwira-kudzvanywa oiri mhango chimiro chemukati chinorema disc mubato rechibatiso chinogona kunyatso tora vibration panguva yekucheka, iyo Hydraulic Holder ine yakanakisa kunyorovesa uye vibration kudzikisa maitiro. Kubatsira kwakananga kweiyo vibration kudzikisa mhedzisiro ndeyekuti inogona kunyatso kudzvanya kudedera kweiyo machining centre. Izvi hazvingogonese kuti workpiece ive nekupedza kurinani kwepamusoro, asi zvakare inodzivirira maturusi emuchina wemudziyo kubva pakuputirwa nekuda kwekuzunguza. Izvi zvinonyanya kukosha mukucheka kwenguva refu uye yakaoma-kune-muchina zvinhu.
3. Yakasimba clamping simba uye torque kutapurirana:
Nekuti iyo dzvinyiriro yemvura inogona kuburitsa hombe uye yunifomu yekusunga simba, iyo Hydraulic Holder inogona kupa yakasimba clamping simba kupfuura yechinyakare chitubu chuck misoro. Iyo yakasimba clamping simba inovimbisa kuti chishandiso hachizotsvedza kana kusuduruka kunyangwe pasi pepamusoro-torque yekucheka mamiriro. Izvi hazvingovimbisi chete kuvimbika kwemaitiro ekugadzirisa, asi zvakare inogonesa kugona kwakazara kwechishandiso chemuchina uye chishandiso kuti chishandiswe, nekudaro kuvandudza mashandiro ekugadzirisa.
4. Kureruka kweKushanda uye Kuchengetedza:
Sezvo chete hexagonal wrench inodiwa kuparadzanisa chishandiso, kushanda kweHydraulic Holder kuri nyore. Hapana mamwe maturusi ekudziya (senge heat shrink tool holders) kana zvinhu zvakaoma zvinodiwa. Izvi hazvingodzikisi kusimba kwevashandi uye kuvimba neruzivo, asiwo kunovandudza kutsiva kushanda zvakanaka. Zvakare, kana uchisimbisa chishandiso, iyo yekumanikidza yekumanikidza inogona kutungamira iyo mafuta mavara kana tsvina pane mudziyo unobata mumigero madiki eiyo sleeve yekuwedzera, kuchenesa iyo inosunga nzvimbo uye kuchengetedza hutsanana, nekudaro ichibvisa kutsvedza uye nekuona kuti iyo huru shaft torque inogona kufambiswa zvinobudirira kuchishandiso.
III. Mamiriro ekushandisa eHydraulic Holder
Hunhu hweHydraulic Holderita kuti ikwanise kupenya zvakajeka mune zvinotevera kugadzirisa mamiriro:
High-precision processing:Semuyenzaniso, kugayiwa chaiko kwe mold cavities uye kudzokororwa chaiko kwemakomba chaiwo (zvinokurudzirwa). Iyo yakakwira runout kurongeka ndiyo kiyi yekuvimbisa dimensional kushivirira uye pamusoro pemhando.
High-speed processing:Iyo yakanakisa dhizaini dhizaini kuita (mamwe mamodheru anogona kusvika 40,000 rpm) inoita kuti ive yakakodzera kukwirisa-kumhanya, inonyatso kudzvanya vibrations nekumhanya kwakanyanya.
Zvakaoma-kune-muchina zvinhu uye kureba kwekuwedzera kugadzirisa:Paunenge uchigadzira zvakaoma-ku-kucheka zvinhu zvakaita setitanium alloys uye yakakwirira-tembiricha alloys, kana kuita kureba kwekuwedzera kugadzirisa, yavo yakanaka yekudzikisa vibration zvivakwa zvinoshanda sevimbiso yakakosha yekudzivirira kuputsika kwechishandiso uye kuwedzera kugadzikana kwekugadzirisa.
Kugadziriswa kwakanaka nekudzora mutengo:Kunyangwe iyo yekutanga investimendi yeHydraulic Holder yakakwira, kugona kwayo kuwedzera zvakanyanya hupenyu hwekucheka maturusi kunogona kuderedza zvakanyanya mutengo payuniti yekugadzirwa kwehuwandu.
IV. Maintenance uye Mashandisirwo Mapoinzi eHydraulic Holder: Ita shuwa kuchengetedzwa kwayo kwenguva refu.
Kunyangwe iyoHydraulic Holderyakagadzirirwa kuve nekuchengetedza-yemahara maficha uye anti-fouling masimba, kwakaringana kushandiswa uye kugadzirisa kwakakosha zvakanyanya. Zvikasadaro, zvinogona kutungamira mukudonha kwemafuta kana kukuvara.
1.Matanho akakodzera ekuisa Zvishandiso: Usati waisa Zvishandiso, iva nechokwadi chokuti chikamu chemubato uye gomba remukati reZvishandiso zvakachena, zvakaoma, uye hazvina chero mavara emafuta, tsvina, uye scratches. Isa Zvishandiso mubato uye simbisa kuti pasi peZvishandiso zvinoenda kusvika pasi (kana kuti kudzika kwekuisa kunodarika 8mm, uchitevera mirairo yemugadziri). Zvikasadaro, kana uchimanikidza, zvinogona kukonzera kuti sleeve yekuwedzera atyoke kana kukonzera kubuda kwemafuta.
2. Standard clamping operation: Shandisa chinoperekedza torque wrench (inokurudzirwa) kana hex wrench kuti usimbise mabhaudhi ekumanikidza kusvika mabhaudhi anzwa akamira zvachose. Izvi zvinoita kuti hydraulic pressure isvike padanho rakakwana, kudzivirira kusakwana kwesimba rekurovera kana kukuvadzwa kwechibatiso chekushandisa nekuda kwekushanda zvakanyanya.
3. Dzivisa kushanda kusina kunaka:
Izvo zvinorambidzwa zvachose kuparadzanisa kana kuedza kugadzirisa chimiro che hydraulic mukati memubato pakuda, sezvo izvi zvinogona kukonzera hydraulic mafuta leakage uye zvichiguma nekukundikana kwekubata.
Edza kudzivisa kushandisa Hydraulic Holder ye rough machining (kunze kwekunge iyo muenzaniso wechombo chibatiso ichinyatsoratidza kuti chakakodzera kucheka kunorema), sezvo yakawandisa yekucheka simba inogona kukuvadza chimiro chemukati.
Izvo hazvikurudzirwe kushandisa Hydraulic Holder kubata maturusi akadai semapombi ane akadzikama chaiwo zvinodiwa uye diki chip-kuburitsa nzvimbo.
Kuchenesa uye Kuchengeta: Mushure mekushandisa, nzvimbo yacho inofanira kucheneswa. Chengetedza pane rack yakaoma uye isina kudengenyeka kwebanga, uye dzivirira mabhambu.
Kutadza kubata: Kana paine zvisizvo zvakaita sekutadza kubvisa chishandiso kana kudzikira kwesimba rekumanikidza, unofanirwa kutanga wabata mugadziri kana nyanzvi yekugadzirisa. Usaedza kuirova kana kuibvisa uri wega.
Kunyangwe iyo hydraulic inobata ine yakakwira mutengo wekutanga uye kazhinji mudziyo mumwe chete unobatirira unogona kungobata diki saizi renji yezvishandiso, generalizability yayo yakaderera zvakanyanya kune iyo yechirimo mudziyo inobata. Nekudaro, iwo mabhenefiti akazara ayo anounza, akadai sekuvandudzwa kwekugadzirisa, kunaka kwepamusoro, kukwidziridzwa kwakanaka, uye nekuwedzera hupenyu hwematurusi, inoita kuti ive mari inocherechedzwa mukugadzirisa kwayo.
