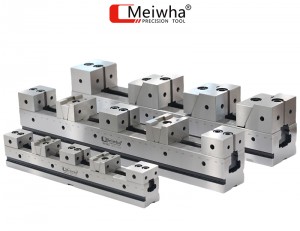

Multi station vise inoreva chiteshi chevhisi chinosanganisa matatu kana anopfuura akazvimirira kana akabatana anosunga zvinzvimbo pachigadziko chimwe chete. Iyi multi-position vise inogona kuwedzera zvakanyanya kushanda kwedu kwekugadzirisa panguva yekugadzira maitiro. Ichi chinyorwa chichatsanangura zvakanakira iyo multi-position vise.
I. Basa guru rezviteshi zvakawanda zvakaipa:
Chaizvoizvo, maitiro akawanda ezviteshi akafanana neaviri-chinzvimbo vices, asi iyo yakawanda chiteshi vices inopa imwe yakanyanya mhinduro.
1.Mechanized kugadzirwa kwekubudirira: Iri ndiro basa rakakosha. Nekubatanidza zvikamu zvakawanda mukushanda kumwe (kazhinji zviteshi zvitatu, zviteshi zvina, kana kunyange zviteshi zvitanhatu), kutenderera kumwe chete kunogona kugadzira zvigadzirwa zvakapedzwa zvakati wandei panguva imwe chete. Izvi zvinoshandisa zvizere kugona kwepamusoro-kumhanya kweCNC muchina maturusi, uye nguva yekubatsira (kusunga uye kurongeka nguva) inogoverwa pakati pezvikamu zvakawanda, zvisingaite.
2.Kuwedzera chiyero chekushandiswa kwemuchina wekushandisa worktable: Mukati menzvimbo shoma yemuchina wekushandisa tafura, kuisa multi-station vise kwakawanda nzvimbo-inoshanda pane kuisa akawanda single station vices. Iyo dhizaini zvakare yakawedzera compact uye inonzwisisika, ichisiya nzvimbo yeakareba saizi workpieces kana zvimwe zvigadziriso.
3. Iva nechokwadi chekuenderana kwakanyanya kwezvikamu mukati mebatch: Zvikamu zvese zvinogadziriswa pasi pemamiriro akafanana (panguva imwe chete, munzvimbo imwechete, neiyo yakafanana clamping simba), zvichibvisa zvachose kukanganisa kwekumisikidza kunokonzerwa neakawanda akaparadzana clamping mashandiro. Izvi zvakanyanya kukodzera kumapoka ezvikamu anoda kunyatsoenderana kana kunyatsochinjana.
4. Yakanyatsoenderana nekugadzirwa kwemagetsi: Multi station vices isarudzo yakanaka kune otomatiki mitsara yekugadzira uye "rima mafekitori". Marobhoti kana maoko emuchina anogona kutora ma blanks akawanda kamwechete kurodha, kana kutora pasi zvese zvakapedzwa zvigadzirwa kamwechete, zvakanyatsoenderana nerhythm yeotomatiki sisitimu yekuwana isina kurongwa uye inoshanda kugadzirwa.
5. Deredza mutengo weyuniti yose: Kunyangwe iyo yekutanga mari yezvigadziriso yakakwira zvakanyanya, nekuda kwekuwedzera kukuru kwehuwandu hwekugadzira, mitengo yakaita sekuderera kwemuchina, kushanda, uye mari yemagetsi iyo yakagoverwa kune chimwe nechimwe chikamu yakadzikira zvakanyanya. Pakazere, izvi zvakakonzera kudzikiswa kwakanyanya mumutengo weyuniti, zvichikonzera kudzoka kwakanyanya pakudyara (ROI).
II. Mhando Huru uye Hunhu hweMulti Station Vise
| Type | Operating musimboti | Merit | Kuperevedza | Chiitiko chinoshanda |
| Parallel multi station vise | Multiple clamping shaya dzakarongwa mumutsara wakatwasuka kana padivi nendege padivi, uye kazhinji inofambiswa synchronously nepakati kutyaira michina (senge refu yekubatanidza tsvimbo) kune ese screws. | Synchronous clamping inova nechokwadi chekuti chikamu chimwe nechimwe chinoiswa pasi pesimba rakafanana; oparesheni yacho inokurumidza kukurumidza, inoda chete kubatwa kwemubato kana switch yemhepo. | Kuenderana kwesaizi isina chinhu kwakakosha zvakanyanya. Kana saizi yekutsauka kweiyo blank yakakura, zvinokonzeresa kusaenzana clamping simba, uye kunyange kukuvadza vise kana workpiece. | Kugadzirwa kwakawanda kwezvikamu zvine hutsinye hwakagadzikana, senge zvakajairwa zvikamu uye zvemagetsi zvikamu. |

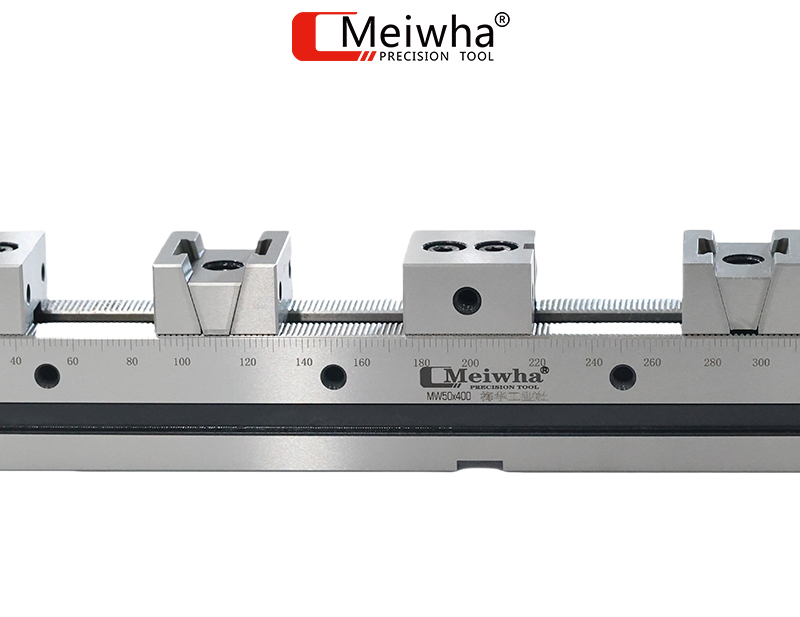

| Modular yakasanganiswa vise | Iyo inoumbwa nehwaro hwakareba uye akawanda "pliers modules" inogona kufambiswa yakazvimiririra, yakamira uye kukiyiwa. Imwe neimwe module ine screw yayo uye mubato. | Kunyanya kuchinjika. Nhamba uye nzvimbo yenzvimbo dzekushanda zvinogona kugadziriswa zvakasununguka zvichienderana nehukuru hwezvishandiso; ine simba rinogadziriswa kune kushivirira kwehukuru husina chinhu; inogona kubata workpieces ehukuru hwakasiyana. | Iko kushanda kunononoka uye imwe neimwe module inoda kusimbiswa zvakasiyana; iyo yakazara kuomarara inogona kunge yakadzikira zvishoma pane iyo yemhando yakabatanidzwa. | Diki batch, akawanda marudzi, ane misiyano mikuru muzvikamu zveworkpiece; R&D prototyping; Flexible Manufacturing Cell (FMC). |
Yemazuva ano yepamusoro-yekupedzisira akawanda chiteshi maitiro anowanzo tora iyo "central drive + inoyangarara muripo" dhizaini. Ndiko kuti, sosi yemagetsi inoshandiswa pakutyaira, asi kune elastic kana hydraulic masisitimu mukati ayo anogona kudzosera otomatiki misiyano midiki muhukuru hwechishandiso, kusanganisa kugona kweiyo yakabatana system nekuchinjika kweiyo yakazvimirira system.
III. Yakajairwa Yekushandisa Mamiriro eMulti station vise
Kugadzirwa kwakawanda: Izvi zvinoshanda kunzvimbo dzinoda mavhoriyamu akanyanya ekugadzirwa, senge zvinhu zvemotokari, zvikamu zvemuchadenga, 3C zvigadzirwa zvemagetsi (senge mafuremu efoni nemakesi), uye mavharuvhu ehydraulic.
Kugadziriswa kwezvikamu zvidiki zvakanyatsonaka: sezvikamu zvekurindira, zvigadziriso zvekurapa, zvibatanidza, nezvimwe. Zvikamu izvi zviduku zvikuru uye kushanda kwekugadzirisa kwechikamu chimwe chete kwakaderera zvakanyanya. Multi-position vices inogona kubata gumi nemaviri kana kunyange mazana ezvikamu panguva imwe chete.
Flexible kugadzira uye hybrid kugadzirwa: Iyo modular vise inogona kusungirira panguva imwe chete akati wandei akasiyana pane muchina mumwe.yekugadzirisa, kusangana nezvinodiwa zvakagadziridzwa zvemarudzi akawanda uye mabhechi madiki.
Kupedzisa kugadzirisa mukushanda kumwe chete: Panzvimbo yekugadzira machining, pamwe chete neotomatiki chishandiso chekuchinja system, kuseta, kudhiraivha, kubata, kufinha, nezvimwe zvechikamu chimwe chete chinogona kupedzwa neseta imwe. Iyo multi-position vise inowanza mukana uyu kakawanda.
IV. Mafungiro ekusarudzwa
Pakusarudza multi station vices, zvinotevera pfungwa dzinofanirwa kutariswa:
1. Chikamu maitiro: zviyero, saizi yebatch, kushivirira kusina chinhu. Kune hukuru hukuru hwebhechi nehukuru hwakagadzikana, sarudza rudzi rwakabatanidzwa; kune madiki batch saizi ane akasiyana mativi, sarudza modular mhando.
2. Mamiriro emuchina: Kukura kweiyo worktable (T-slot spacing uye dimensions), rwendo rwekufamba, kuve nechokwadi chekuti vise haizopfuure muganhu mushure mekuiswa.
3. Kururama zvinodiwa: Tarisa kudzokororwa kwekumisikidza kurongeka uye zvakakosha zviratidzo senge parallelism / verticality yevhisi kuona kuti inosangana nezvinodiwa zvechishandiso.
4. Clamping Force: Ita shuwa kuti pane yakakwana clamping simba kurwisa simba rekucheka uye kudzivirira workpiece kufamba.
5. Automated interface: Kana chigadzirwa chakagadzirirwa otomatiki, zvinodikanwa kusarudza modhi inotsigira pneumatic, hydraulic drive, kana ine yakatsaurirwa sensor interface.
Pfupisa
Multi station viceszvinogona kuva zvibereko zvakawanda. Iwo chinhu chakakosha chinotyaira indasitiri yekugadzira kuenda kune yakakwira kunyatsoshanda, kuenderana kukuru, mitengo yakaderera, uye yakakwira otomatiki.
